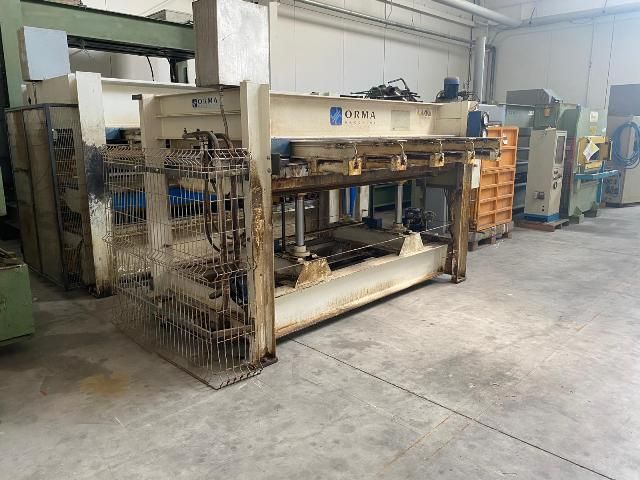

SECOND-HAND UNIVERSAL HOT PRESS FOR VENEER AND SOLID WOOD GLUED PANELS WITH SIDE PRESSURE CYLINDERS ORMA MOD. NPC/L

Opis proizvoda

SECOND-HAND UNIVERSAL HOT PRESS FOR VENEER AND SOLID WOOD GLUED PANELS WITH SIDE PRESSURE CYLINDERS ORMA MOD. NPC/L

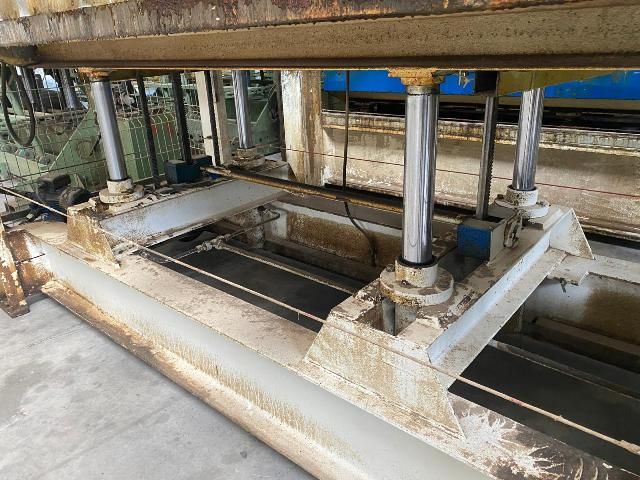

Vertical thrust
Total thrust – 60 tons
Specific pressure – 2 kg/cm2
Plate dimensions – 2500x1300 mm
Cylinders – 4
Cylinder diameter – 70 mm
Electric boiler thermal power – 18 kW
Voltage – 400/3/50 Hz
Horizontal thrust
Total thrust – 25 tons
Cylinders – 5
Cylinder diameter - ø 65/40 mm
Operating temperature - 100°C
Weight - 3.5 tons
Power - 21 kW 29 A
Voltage - 380/3/50 Hz
Dimensions - 3100 x 1650 x 1800 mm
CE standard
Year 2003
