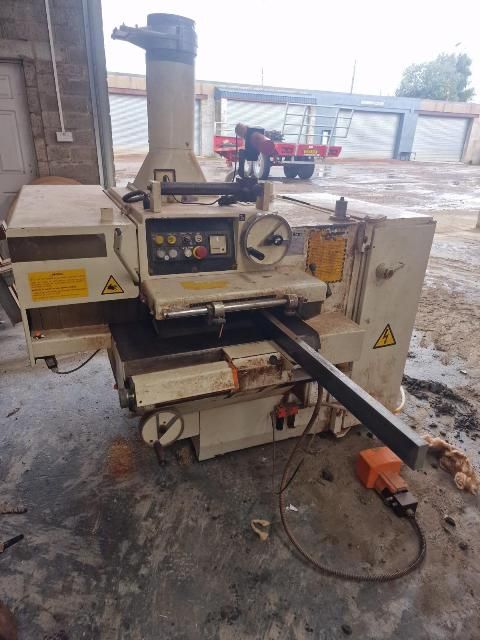

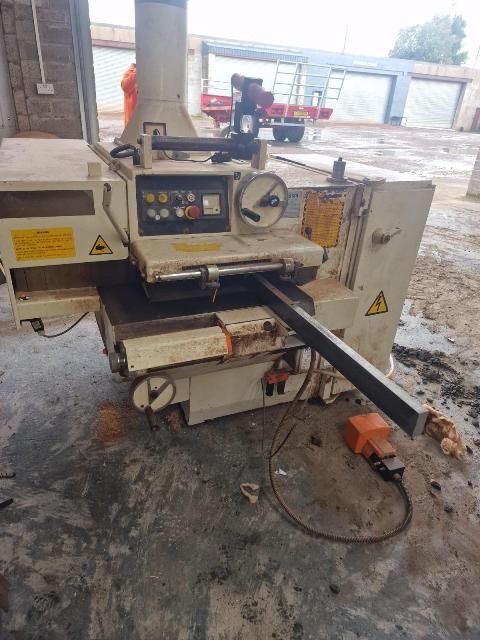

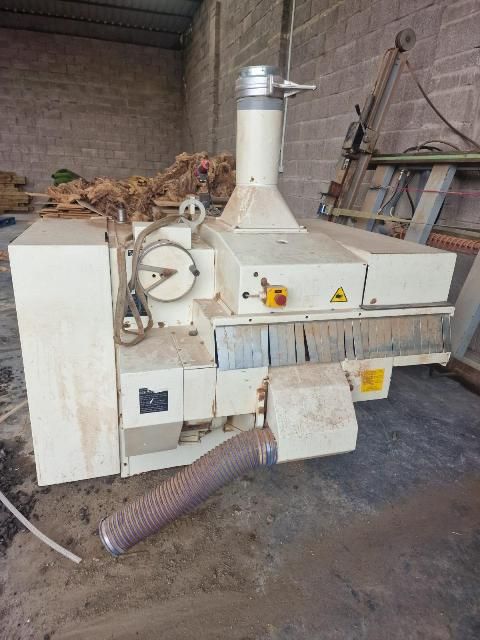

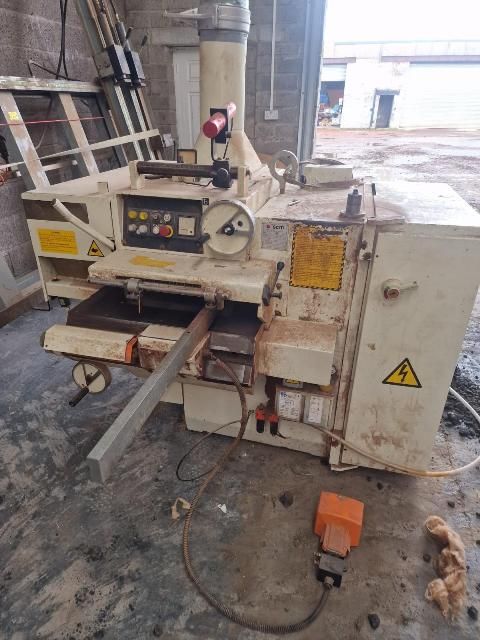

SECOND-HAND MULTIRIP SAW SCM MOD. M3

Product description

MULTIRIP SAW SAW SCM MOD. M3 – CE RULES
Year of manufacture: 2001
Serial number: AB145642
Power supply voltage: 400 V / 50 Hz
Motor power: 18.5 kW
Blade rotation speed: 4,200 rpm
Maximum blade pack width: 300 mm
Conveyor belt width: 300 mm
Maximum blade diameter: 350 mm
Minimum blade diameter: 200 mm
Minimum workpiece length: 390 mm
Blade bore diameter (shaft): 70 mm
Keyway dimensions on blade shaft: 20 x 5 mm
Distance from machine base to first right blade: 200 mm
Conveyor feed speed: continuously adjustable from 6 to 48 m/min
Conveyor type: with direct-joint spheroidal cast iron pads
Conveyor guide rails: low-friction, one with prismatic profile for perfect straightness
Conveyor lubrication: automatic
Clutch: present on feed speed variator
Working table height from floor: 750 mm
Working table dimensions: 1,530 x 950 mm
Dust extraction port for blades: Ø 200 mm
Dust extraction port for conveyor: Ø 120 mm
Air volume extracted (at 25 m/sec): 3,850 m³/h
Programmable fence: with turret stops, pneumatic positioning via foot pedal
Laser reference: for cutting line
Base frame: made of single-block cast iron
